Description
| Category | PIPE FITTING |
| Page | D4 |
| : | |

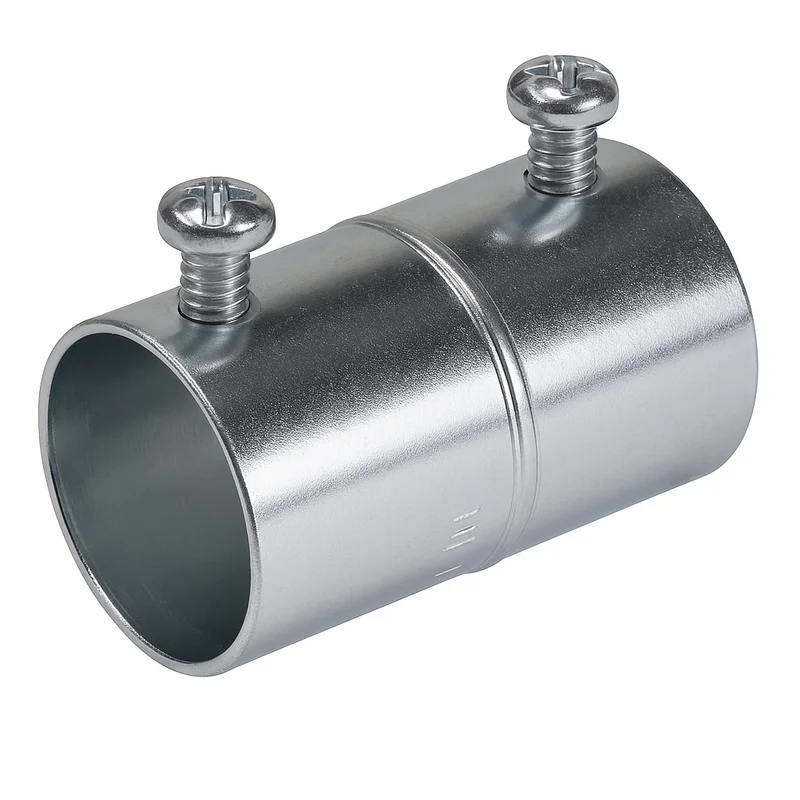

| Orbit Industriesš¬¢ zinc die-cast set-screw electrical couplings are used in dry locations to connect the ends of two EMT thinwall conduits together to extend the raceway. | |
| Features: | |
| – Zinc Die Cast – Concrete-Tight when taped – Combo Head Set-Screw – Suitable for applications above 600V – Sizes 2-1/2″ to 4″ are also listed for RIGID and IMC Conduits |
|
| Certifications: | |
| UL File Number: | |
| E310660 | |
| CAT NO | UPC | TRADE SIZE | STD PKG | MASTER CTN |
| OF711 | 8-35243-05037-2 | 1/2″ | 50 | 500 |
| OF712 | 8-35243-05038-9 | 3/4″ | 25 | 250 |
| OF713 | 8-35243-05039-6 | 1″ | 10 | 100 |
| OF714 | 8-35243-05040-2 | 1-1/4″ | 10 | 100 |
| OF715 | 8-35243-05041-9 | 1-1/2″ | 10 | 50 |
| OF716 | 8-35243-05042-6 | 2″ | 5 | 50 |
| OF717 | 8-35243-05043-3 | 2-1/2″ | – | 12 |
| OF718 | 8-35243-05044-0 | 3″ | – | 12 |
| OF719 | 8-35243-05045-7 | 3-1/2″ | – | 6 |
| OF720 | 8-35243-05046-4 | 4″ | – | 6 |
