Description

Alloy LED AL-98-03-12024-NM

AL-98-03-12024-NM Product

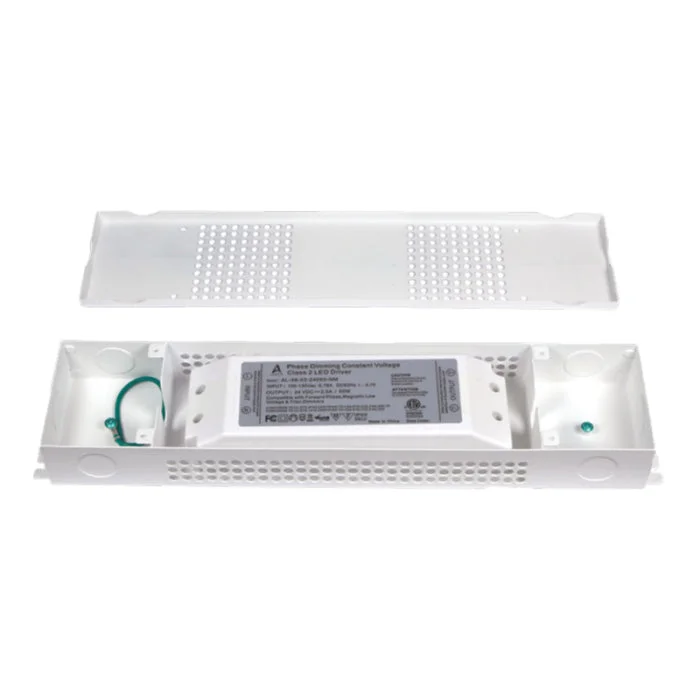

Alloy LED’s line of PrimaVolt No Minimum Load Dimmable Drivers with Junction Box provides the smoothest, most stable, and most efficient power and dimming capability in our line of power supplies. Advanced technology reads the signal from a TRIAC dimmer switch for smooth dimming using forward-phase ELV, MLV, and TRIAC dimmers. PrimaVolt No Minimum Load drivers include an ETL Listed junction box for code-compliant installation of LED lighting. Many models are Class 2 compliant, making them safe, reliable, and inspection-ready. They are also already derated, which means they can be loaded to maximum wattage capacity.

Specifications:

Manufacturer: Alloy LED
Manufacturer Part Number: AL-98-03-12024-NM
DC Voltage: 12V DC
Rated Current: 2A
Rated Load: 24W
Specified Input Voltage: 120V AC
Frequency Range: 47~63Hz
Working Temperature: -40~+60°C / -40~+140°F / 20~90%RH
Size (Junction Box) LxWxH: 13.78 x 3.03 x 1.46 in. (incl. mounting tabs)
Size (Driver) LxWxH: 6.1 x 2.12 x 0.79 in.

About Alloy LED:

At Alloy LED, we’re not just a lighting manufacturer and distributor—we’re your dedicated lighting partner, committed to ensuring your project’s success from start to finish. Whether you are looking for off-the-shelf products or custom-built solutions, we provide high-quality, reliable lighting systems to meet your unique needs.
