Description

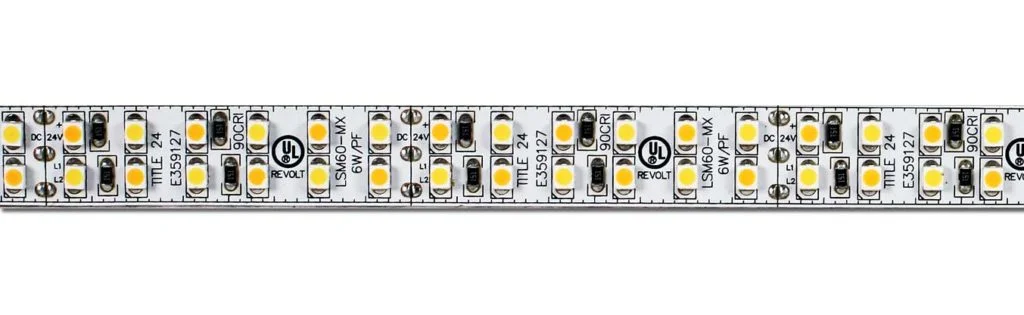

Core Lighting LSMW60MX-2750-16FT-24V

LSMW60MX-2750-16FT-24V Product

LSM60MX  is a new hybrid version of our popular LSM-60 series. It features combined Color Temperatures in one LED strip ranging from warm 2200K to cool 6000K. It is offered in a low-profile design that can be attached almost anywhere. These strips are great for many common indoor applications and produce a 120° light beam spread. The LSM indoor LED strips are bright eco-friendly,  dimmable, and produce virtually no heat. Once installed you can enjoy your lights without worrying about changing any bulbs with a lifespan of over 50,000 hours!

Specifications:

Manufacturer: Core Lighting
SKU: LSMW60MX-2750-16FT-24V
INPUT VOLTAGE 24V DC
POWER CONSUMPTION 6W per foot
LUMEN OUTPUT  500+ Lumens per foot
NO. OF LEDs 72 LEDs per foot
BEAM ANGLE 120º
CRI 90+
DIMMING MLV, ELV, 0-10V and TRIAC
MAXIMUM RUN LENGTH 16 Feet
FIELD CUTTABLE Every 1.0 in (25.4MM)
IP RATING IP65 Wet location (Outdoor)
LUMEN MAINTENANCE 50,000 hrs.
OPERATING TEMPERATURE -40ºF(-40ºC)~+140ºF(+60ºC)
BINNING 1.5 Step Macadam Elipse
CERTIFICATIONS UL listed
DIMENSIONS 0.67” x 0.20” (width x height)
