Description

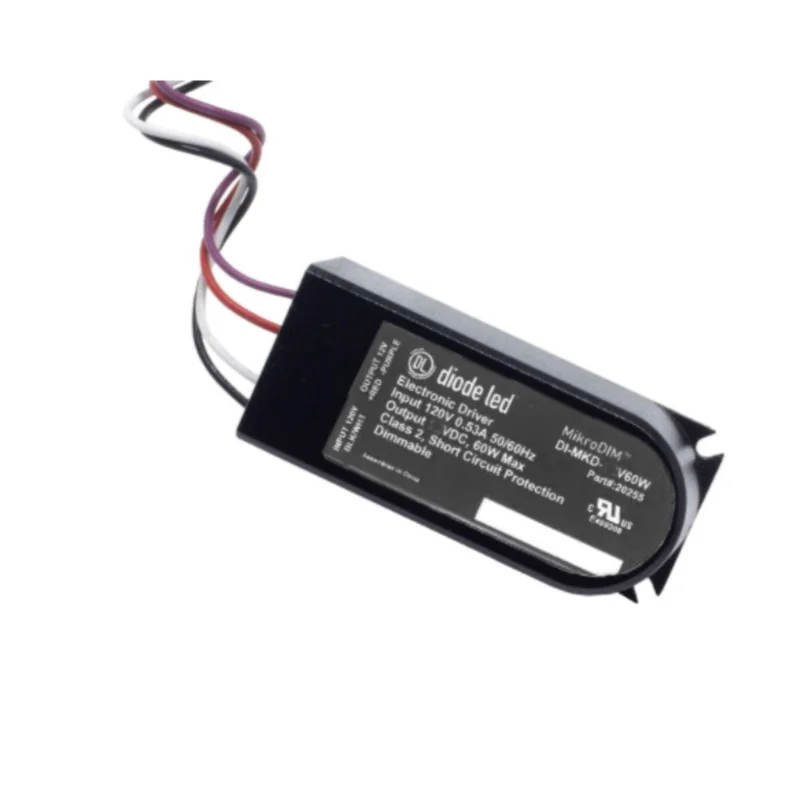

Diode LED DI-MKD-24V60W

DI-MKD-24V60W Product

The MikroDIM™ 12VDC LED Drivers are an excellent choice to pair with dimmers. These hard-wired drivers are available in multiple voltage and wattage combinations to meet your low-voltage LED lighting needs.

Specifications:

Input Voltage: 120VAC
Max Load: 120VAC 0.53 50/60Hz
Class 2 Certified: Yes
Output Voltage: 24VDC
Ambient Temperature: -22 – 104°F (-30 – +90°C)
Operating Temperature: -4 – 194°F (-20 – +40°C)
Minimum Load: None
Input Current Full Load: .50A@120VAC
Primary Leads: UL 1015 18/2AWG, AC/L (Black), AC/N (White)
Secondary Leads: UL 1007 18/2AWG, V+(Red), V-(Blue)
Voltage Boost: No
Circuit Breakers: Short Circuit Protection
Efficiency / Power Factor Full Load: 93% / PF>0.9
Environment: Indoor / Damp
Working Humidity: 5 – 95% RH non-condensing
Housing / Cooling: IP20-rated case with silicone-based potting
Dimensions: Length = 3.05″, Width = 1.36″, Height = 1.03″
Warranty: 5 Years
Certifications: E499308 cULus R/C 8750, CAN/CSA C22.2 No. 250.13-14. CE Certified.

About Diode LED:

Diode LED is America’s largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
