Description

Features:

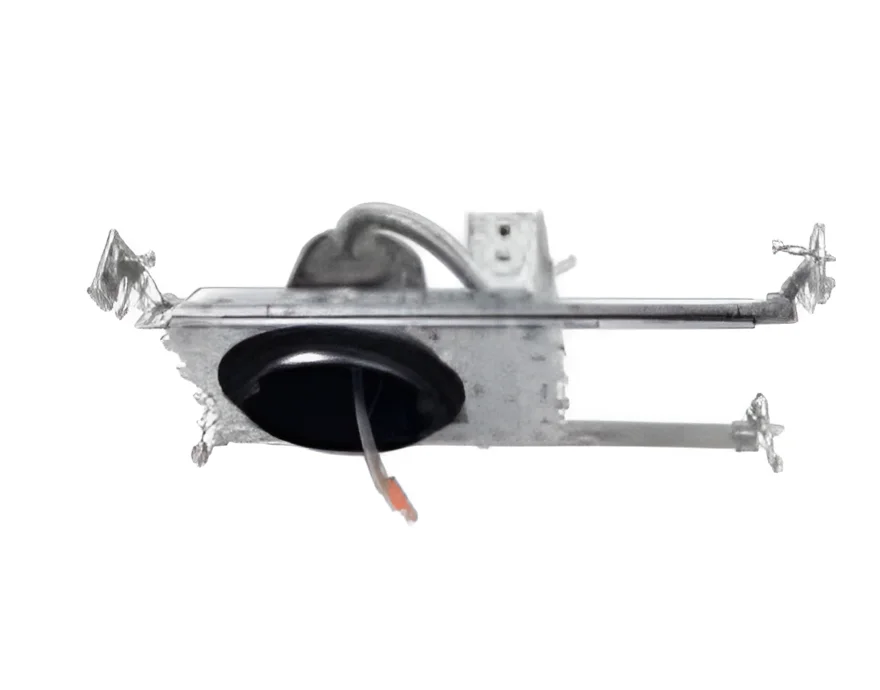

• Single Wall IC.
• Height allows for use in 2×4 construction.
• Flexi-joint allows for easy installation and solid support.
• Driver included on housing.
• CA Title 24 compliant (JA8-2016-E).
• LED Light Engine sold separately.
• U.S. Patent 10,281,131.

SPECIFICATIONS :

• Wattage 9W
• Voltage 120V
• Dimmable Triac/ELV
• Wet Location Listed

Construction: IC Rated for Direct Contact with Insulation, for use in IC and non-IC conditions.
Housing adjusts to accommodate up to 1 1/4″ ceiling thickness.
Aluminum housing for greater heat dissipation.
Driver mounted on junction box for cooler LED operation.

Installation: Designed for shallow ceiling plenums where 2×4 joists or taller are used. Maximum hole cutout is 2 5/8. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Electrical: Driver connects to 120V power supply. High Efficiency driver with a power factor > 0.9.

Dimmability: Works with 120V Triac and ELV type dimmers . Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List.

Trims: Compatible with – E210C06, E213C06, E214C06, E215C06, E218C06, E219C06 series.

Warranty: ELCO Products are built to last with a 5-year Limited warranty.

Labels and Listings:

• UL Listed for Wet Location.
• UL Listed for Direct Contact with Insulation and Combustible Material.
• UL Listed for Feed Through.
• Meets restricted airflow requirements (per ASTM E-283).
• ENERGY STAR® Certified.
• California Title 24 (JA8-2016-E).
