Description

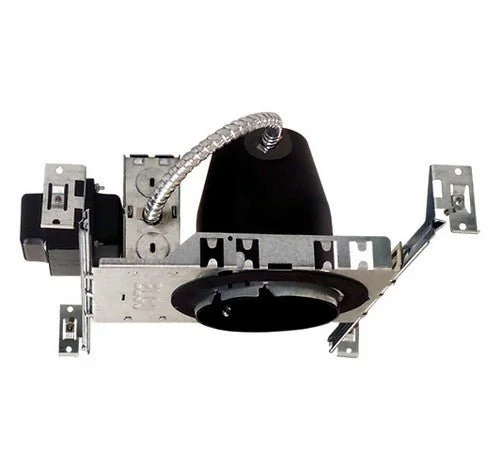

ELCO Lighting 5″ 2-hour fire rated new construction LED housing with quick connect.

FEATURES :

Shallow single wall IC construction, for use in insulated ceilings.
CA Title 24 compliant (as high efficiency luminaire).
Trims sold separately.
Lamp: 17W Max 120V.
UL Listed for damp location and for feed through.
Compatible with ELCO 5″ LED Inserts.

SPECIFICATIONS :

• Wattage : 17W
• Voltage : 120V or 277V
• Damp Location : Listed

Construction:
Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/4″ ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air tight requirements.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2×8 joists or taller joists are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 5 1/2″. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2″ trade size conduit knockouts, four 3/4″ knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed hanger bars with TrueNail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24″ and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.

Electrical:
Input Voltage: 120V AC.
Inherently protected.

Dimmability:
Dimmability based on lamp.

Lamp: Designed for use with ELCO 5″ LED inserts, LED modules, or PSA37 with 5″ MR16 trims.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years.

Labels and Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp for Title 24 Compliance.
