Description

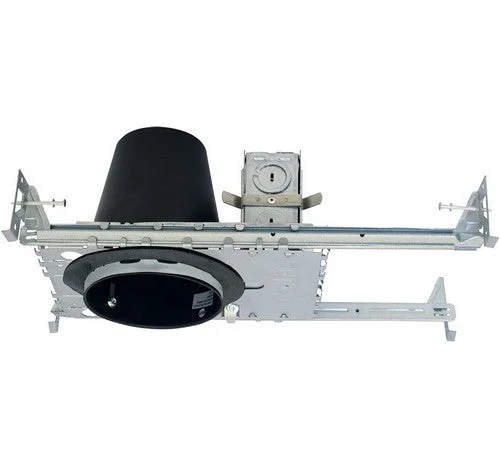

4″ Line Voltage Airtight Housing.
Integral thermal protector guards against improper lamping.
Adjustable socket bracket allows for different lamp types/sizes and proper and consistent lamp positioning.
Lamp: 50W MAX.
Can be retrofitted to use 120V MR16 lamps with PSA28 adapter.
UL Listed for damp location and for feed through.

SPECIFICATIONS :

Wattage 50W
Voltage 120V
Lamp Type Medium Base (E26)
Damp LocationListed

Construction:
Housing adjusts in frame to accommodate up to 1 1/4″ ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2×6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 4 1/4″. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2″ trade size pryout conduit knockouts, 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-grids. Spans up to 24″ and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with the joists.

Electrical:
Input Voltage: 120V AC.
Thermally protected against improper lamping.

Trims: Compatible with ELCO 4″ Line Voltage PAR trims.

Lamp: Designed for use with Medium Base (E26) PAR lamps up to 50W.

Listings:
UL Listed for Damp Location.
UL Listed for Feed Through.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.
