Description

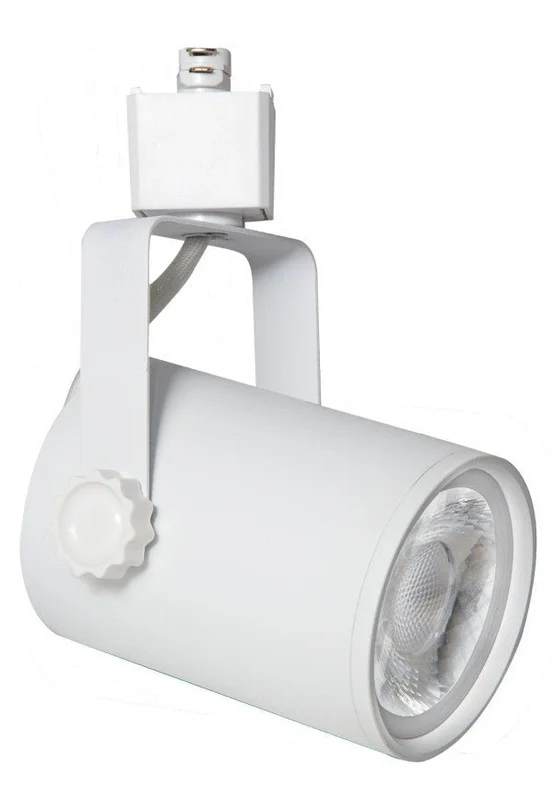

LED Stein Track Fixture

FEATURES :

• Diecast adjustable track fixture.
• Integrated driver.
• 50,000 hours life-span.
• 38° Beam angles standard. Optional lenses for Steinž¢
  (ET616) 15° (EP719C) or 24° (EP720C)
  available. Optional lenses for Steinž¢
  (ET617) 15° (EP722C) or 24° (EP723C) available.
• 90° vertical adjustment, 358° rotation.
• Use with ELCO 120V Single or Double Circuit Track.
• High efficacy COB LED.

SPECIFICATION :

• Wattage 10W – 18W
• Lumens 800 lm – 1600 lm
• Voltage 120V
• Color Temp. 2700K – 4000K
• Beam Angle 38°

Construction:
Full diecast construction for exceptional heat management and lasting quality. Powder coat
architectural white and architectural black matte finishes.

Adjustability:
Track head is adjustable 180° vertically with 358° rotation.

Optics:
Lens provides smooth lumen output at standard 38°. Lens available as accessory with 15° (EP719C) or 25° (EP720C).

Installation:
Effortlessly installed into H-Style track from ELCO or others. Compatible with Single and Double circuit track. Can be ordered as J-Style or L-Style.

LED Technology:
Extremely accurate Color Rendering Index of 93+ CRI
Efficacy of over 83 lumens per watt
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results
Instant On to Full Brightness technology
Chip on Board LED design results in a smooth lumen output with no LED pixelation

Dimmability:
Triac and ELV dimmable down to 10%. For full list of dimmers refer to the Dimme
Compatibility List.

Electrical:
Driver is rated for 120V input. High Efficiency driver with a power factor > 0.9

Listings:
ETL Listed. RoHS Compliant.

Warranty:
ELCO Products are built to last. 5-year Limited warranty.
