Description

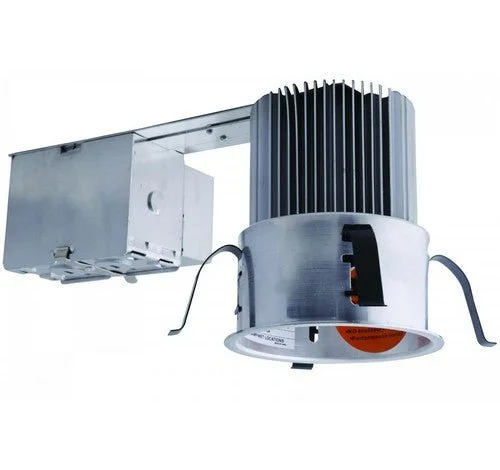

Elco Lighting 5″ Airtight IC Housing with GU24 Socket for Ketra, Lamp Type GU24, Wattage 27W, Voltage 120V

FEATURES:

Airtight Housing for insulated ceilings.
Lamp: GU24
Compatible with the Ketra S30 Downlight Trim
Meets CA Title 24 standards with qualified lamps.
UL Listed for damp location and for feed through.

Specifications:

Wattage 27W
Voltage 120V
Lamp Type GU24
Damp Location Listed

Construction:
 IC rated for direct contact with insulation, for use in IC or non-IC conditions.
 Housing adjusts in frame to accommodate up to 1 1/4″ ceiling thickness.
 Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
 Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2×8 joists or taller are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 5 1/2″. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2″ trade size pryout conduit
knockouts, 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber,
engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-grids. Spans up to 24″ and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with the joists.

Electrical:
 Input Voltage: 120V AC.
 Thermally protected against improper lamping.

Trims: Compatible with the Ketra S30 Downlight Trim.

Listings:
 UL Listed for Damp Location.
 UL Listed for Feed Through.
 UL Listed for Direct Contact with Insulation and Combustible Material.
 Airtight per ASTM E-283.
 Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.
