Description

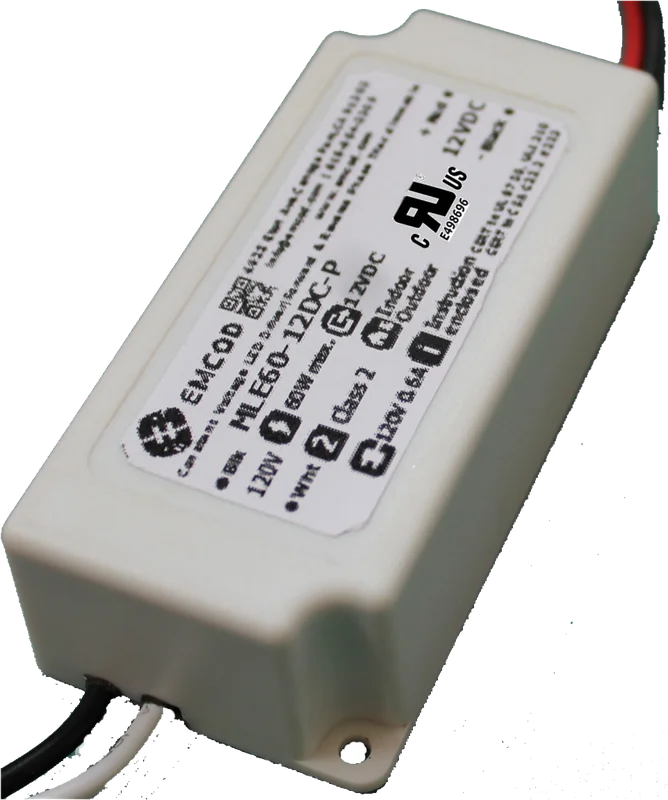

EMCOD MLE60-12DC-P

MLE60-12DC-P Product

EMCOD 60W Electronic Phase Cut Dimmable, Plastic Suitable For Dry And Damp Location Enclosure

Specifications:

Transforme
Dimmable with compatible MLV, ELV, CL dimmers, please refer to list on
emcod.com
Temperature class F(155°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C

Housing
The actual transformer 60W is encapsulated in the enclosure
The enclosure is Plastic suitable for dry and damp location, fit in 4″
junction box, IP20 rated
Enclosure Temperature does not exceed 95°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 1.57, W = 3.3, D = 0.98
Weight (LBs): 0.4

About EMCOD:

EMCOD is a world-class developer and manufacturer of LED drivers, Lighting and custom made general-purpose transformers for electronic and electrical equipment. Emcod Lighting group’s advanced LED drivers and transformers bring innovation to commercial and residential lighting.
