Magnitude Lighting CVD96L24DC

CVD96L24DC Product

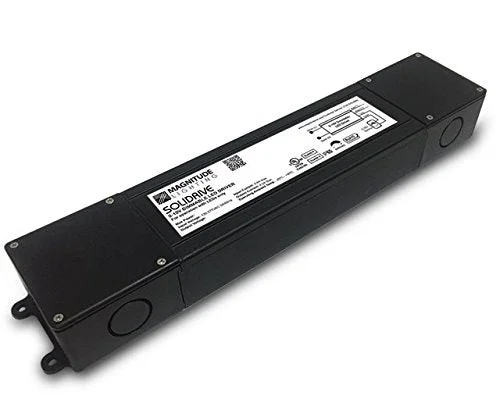

This item is the Magnitude Lighting low voltage power supply part number CVD96L24DC. This driver has a universal input voltage of 120-277V and includes Auto Reset for over temperature, over load, and short circuit protection. As always, a 5 year warranty is standard on all of Magnitude’s products. The output current is 4100mA output with a max output power of 96 watts. This driver will operate any LED series of parallel string of LEDs designed for constant voltage input of 24V. This LED Driver is dimmable with 0-10V dimming and delivers smooth flicker-free linear dimming down to 1% with most LED’s and a wide variety of compatible dimmers. It is IP66 rated and UL 8750 Approved, and Class 2, Class P rated.

Specifications:

Manufacturer: Magnitude Lighting
MPN: CVD96L24DC
UPC: 810020792188
Lighting Technology: LED
Driver: Constant Voltage
Output Current: 4.1A (4100mA)
Input Current: 0.96A
Output Wattage: 96 Watt
Input Voltage: 120-277VAC
Output Voltage: 24VDC
Frequency: 50/60Hz
Power Factor >.95
THD (Total Harmonic Distortion) Power <20%
Efficiency: 84%
Dimming: 0-10V Dimming
Max Case Temperature: 80°C
Operating Temperature : -25°C to 40°C
Rated Life: 50,000 Hours
Dimensions: 11.4″ L x 2.36″ W x 1.4″ H
Certifications: Class P, RoHS Compliant, FCC
Environment: Dry and Damp Location

About Magnitude Lighting:

Magnitude Lighting’s advanced LED drivers and transformers bring innovation to commercial and residential lighting. Magnitude Lighting is an independent LED power company that focuses on LED drivers and transformers for Commercial, Industrial and Residential applications. With a remarkable longevity in LED Technology since 2008, Magnitude Lighting was one of the first companies in the industry to bring dimmable LED drivers into the lighting market.
