Description

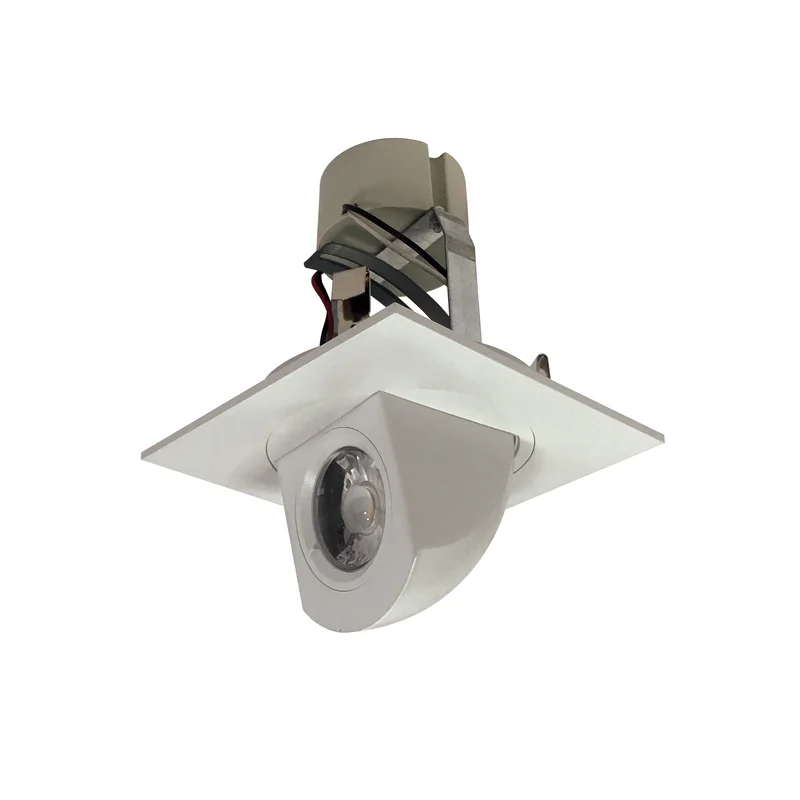

Details of the Nora Lighting NLCBC-487030XW/A 4″ Cobalt Square Adjustable Elbow LED Retrofit, 800lm / 12W, 3000K, White Finish

4″ Cobalt adjustable elbow LED retrofit downlights offer great aiming flexibility with 358° rotation and 75° tilt. Two field changeable optics are included and luminaires are suitable for use with most 4″ recessed housings. Adjustment: 75° Tilt / 358° Rotation Input Voltage: 120VAC Lumens / Wattage: 800lm / 12W Color Temperature: 3000K Color Rendering Index: 90+ CRI Dimming: Triac or ELV Finish: White Included: Retrofit Adapter and Field Changeable Optics Listing: cULus classified for damp locations

Features

• Retrofit existing 4³ recessed housings
• Field adjustable beam spreads (narrow flood installed and spot included)
• 800 lumen output
• 2700K, 3000K, 3500K or 4000K @ 90+ CRI
• Cree® COB LED Technology
• Integral dimmable driver
• Certified to the high efficacy requirements of California Title 24 JA8-2022

Specification

• Brand: Nora Lighting
• SKU: NLCBC-487030XW/A
• UPC: 732180245277
• Product Line: LE43
• Product Family: 4″ Cobalt Adjustable Retrofit
• Product Type: Recessed
• Color Temperature: 3000K
• Wattage: 12W
• Lumens: 800lm
• CRI: 90
• Finish Color: White

Downloads

Specification Sheet IES File Instruction Sheet Brochure

Photometric Layout
