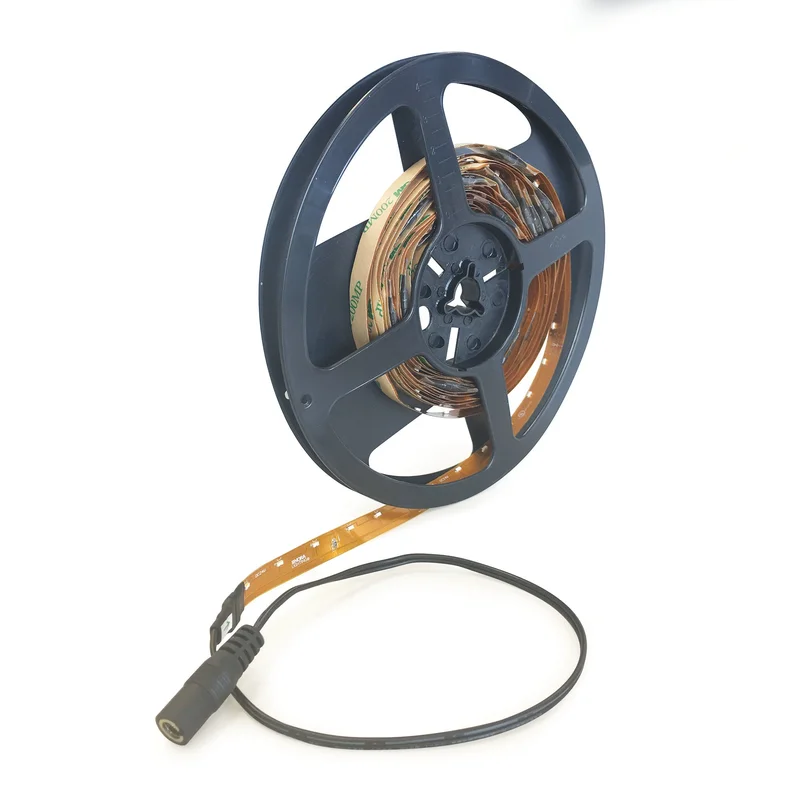

Details of the Nora Lighting NUTP9-16LED27 SIDE TAPE LIGHT 16′ , 24V 2700

Side-Lit LED tape has the same performance features as the standard damp label tape, but instead of projecting the light at 90 degrees and a 120 degree beam spread the light is projected to the side, parallel to the mounting surface of the tape. For example, when mounted under a cabinet in a horizontal position, the light projects sideways toward the back splash with minimal reflection on the counter top. This very low profile, energy efficient LED tape is only 7/16³ wide and 1/16³ thick. Designed to cast no shadows, our flexible LED light boasts a desirable seamless glow. Installation is easy as each roll (16 feet) is separable every 12³ and can also be cut every 4³.

FEATURES:

• 70 Lumens per foot with 3000K CCT
• 288 LEDs / 24W per roll; 18 LEDs / 1.05W per foot
• 24V DC single color illumination
• Available in Warm White (3000K), Warm White (2700K)
• Separable every 12³, easily disconnect and connect without soldering
• Field cuttable every 4³
• Easy to install with pre-applied 3M„ tape, clips or channel
• Dimmable with dimmable power supply

CONSTRUCTION: The 24V tape is separable every 12³, and can be cut every 4³ at marked intervals. Cutting does not effect circuit.

MOUNTING: Each Tape Light roll comes with 15 clear acrylic clips and also comes with pre-applied 3M„ adhesive tape for simple installation.

DRIVER: A wide variety of drivers are available from direct plug-ins, Class 2, and Dimmable Class 2 Drivers.

ELECTRICAL:
Power: 24V DC Input / 1.05 Watts Per Foot
Light Source: 18 LEDs per foot
Maximum Run Length: 64²

Specification

• Brand: Nora Lighting
• SKU: NUTP9-16LED27
• UPC: 732180322732
• Product Line: LED5
• Product Family: Side Lit
• Product Type: Tape Light
• Color Temperature: 2700K
• Wattage: 1.05W per ft.
• Lumens: 70lm per ft.
• CRI: 80
• Finish Color: Amber

Downloads

Specification Sheet IES File Instruction Sheet Brochure
