Description
| Category | SWITCH BOX |
| Page | P27 |
| Barcode | 8-35243-02278-2 |
| : | |

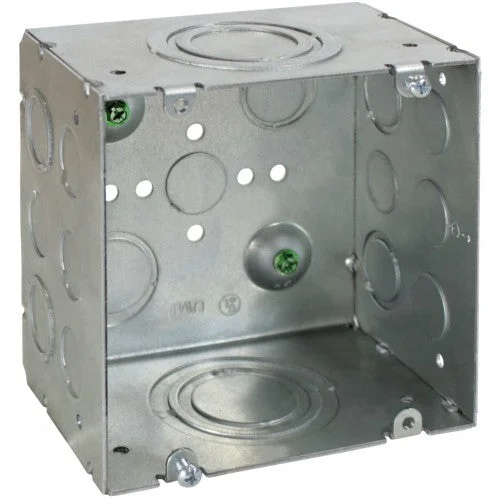

| Orbit Industries’ selection of 5š¬� Square Boxes and Accessories provides the capacity needed to handle modern-day hospital, commercial, government, university and other data installations. Up to 71.8 cubic inches of capacity allow for an easier installation of high-speed cable, resulting in reduced labor costs and cable stress. | |
| Features: | |
| – More than double the capacity of standard 4š¬� square boxes – Increased capacity easily meets minimum bend radius requirements for an easier installation – Extra space in the box reduces the chance of short circuits and ground faults due to cramped spaces and cable stress – Can store the BICSI-recommended slack cable loop, allowing for easy access and cable termination by a single technician – Supports all current copper CAT and fiber optic cables in addition to predicted cable size increases – Compatible with Orbit’s Simple Support Bracket System, Fixed Mounting Brackets (FMB) and Flat Bracket Family for between stud applications – Suitable brackets allow the T5B to use a 4″ ring, reducing material costs – Cover, Reducer and Partitions available here |
|
| Dimensions: | |
| Width | 5″ |
| Height | 5″ |
| Depth | 3-1/4″ |
| Cu In | 71.8 |
| Specifications: | |
| Material | 16 GA Sheet Steel |
| Mfg. Process | Welded |
| KO Sides | (2) 1″ to 2″ C.K.O.’s, (4) 1/2″ & 3/4″ C.K.O.’s, (8) 1/2″ K.O.’s |
| KO Bottom | (1) 1/2″ & 3/4″ M.K.O.’s, (1) 3/4″ & 1″ M.K.O.’s (1) 1/2″ K.O.’s, (2) Ground Screws |
| Packaging Info: | |
| Std Pkg | 10 |
| Certifications: | |
| UL File Number: | |
| E227970 |
