Description

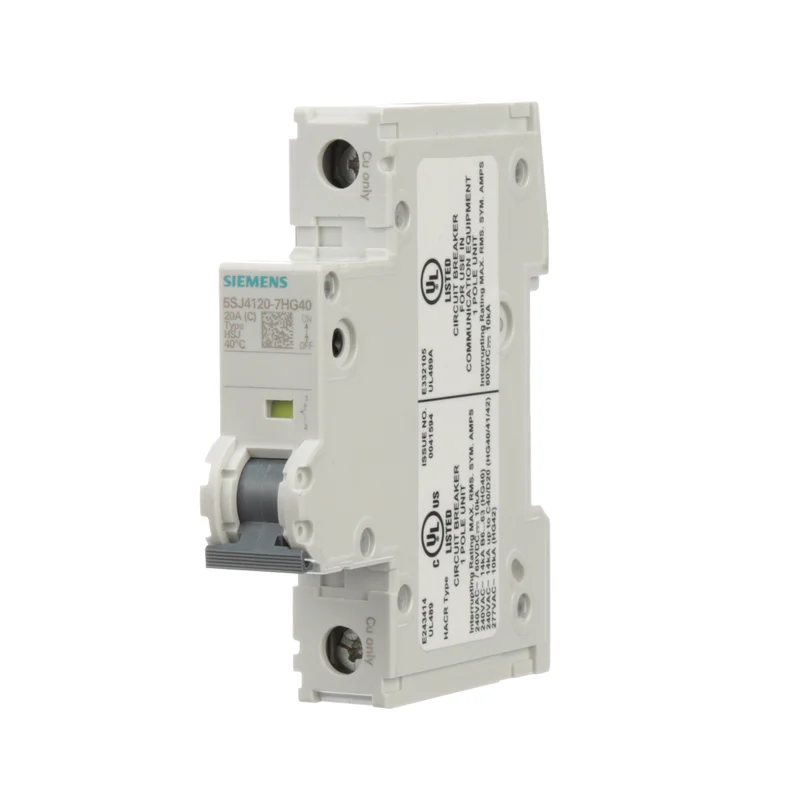

Siemens 5SJ4120-7HG40

5SJ4120-7HG40 Product

5SJ4120-7HG40, Siemens, 5SJ Series, type 5SJ41, 1P, 1PH, 20A, 240V AC, 14kA@240V, standard interrupting capacity, 40?C, Feed-Thru, LI – Long-Time and Instantaneous trip functions, Thermal Magnetic, miniature molded case circuit breakers

SPECIFICATION:

Manufacturer:  Siemens
SKU: 5SJ4120-7HG40
Amperage : 20 Amp
Applications : For Branch Circuit Protectors
Connection Type : Identical Wire Screw Connections On Line And Load Side.
Current : 35 AMP
Frequency : 50 Hz
Interrupt Rating : 14 kAIC
Material : Thermoplastic
Mounting Type : 35 mm DIN Rail
Number of Poles : 1 Pole
Short Circuit Current : 14 kA
Size : N/A
Standard : CSA 22.2 NO. 5-02,EN 60 947-2,UL 489,IEC,HACR,EN 60 898
Tc Connection : Identical wire screw connections on line and load side.
Trip Type : Class C
Type : HSJ
Voltage : 400 Volt
Weight : 0.340 lb
Height : 3-1/4 Inch
Length : 1 Inch
Width : 4.550 in
Country of Origin : Germany
