Description

Technical Specs

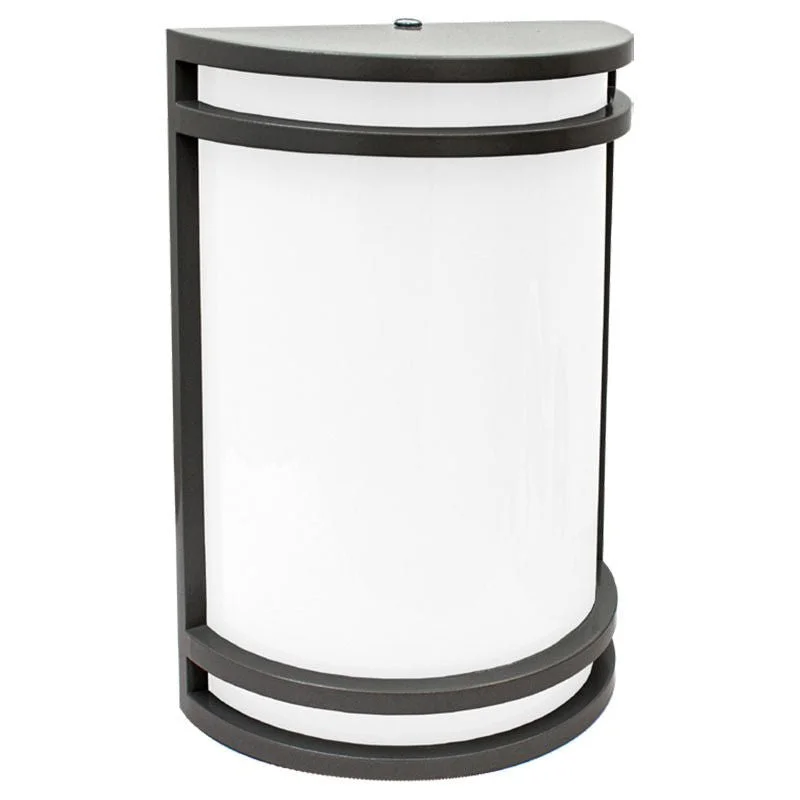

• Housing: Steel base with die-cast rings (oil rubbed bronze finish)
• High transmission frosted plastic lens with excellent distribution and uniformity
• Direct replacement of fluorescent
• Multi CCT (Selectable switch on the LED board)
• Dimming: TRIAC Dimming (using Standard TRIAC LED Dimmers)
• Lumens: 1200LM
• Wattage: 12W
• Color Temp: 2700K/3000K/3500K/4000K/5000K
• Voltage: 120V AC 50/60Hz
• Output Voltage: 36VDC
• Total Harmonic Distortion: 15%
• Efficacy: 100LPW
• Finish: Black
• Power Factor: 0.90
• Maximum Ambient Temperature: 50°F ~ 113°F
• Beam Angle: 120°
• Color Rendering Index: CRI 80
• Lifespan: 50,000 hours
• Suitable for Wet Locations

  Applications

• Ideal for hallways, bedrooms, laundry rooms, bathrooms, alleys, loading docks, doorways and pathways.
