Description

Technical Specs

• Voltage: 120V or 277V
• Wattage: 22W
• Double wall IC rated for direct contact with insulation.
• For use in IC and non-IC conditions
• Housing adjusts in frame to accommodate up to 1 1/2� ceiling thickness
• Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements
• Suitable for Damp Locations
• Pre-wired #21 gauge galvanized steel junction box with (7) 1/2� knockouts and (4) Romex® knockouts and removable plates

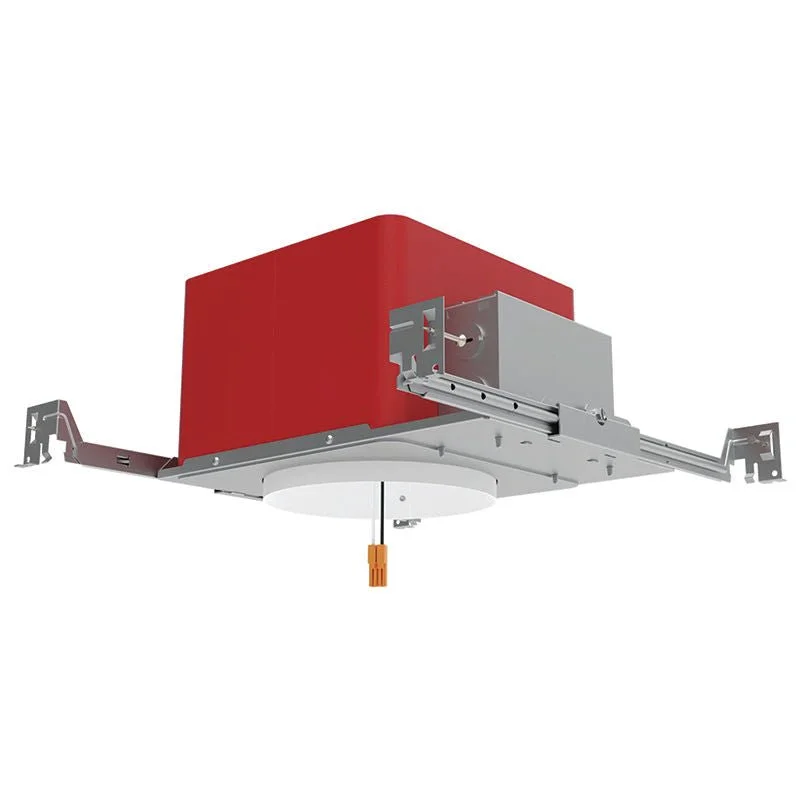

• Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24� and can be repositioned 90. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Applications

• Designed for ceiling plenums where 2×8 joists or taller are used
• High strength hanger bars can easily be nailed to joists
• Suitable for T-grid and drop ceiling applications
• See installation sheet for detailed information
