Description

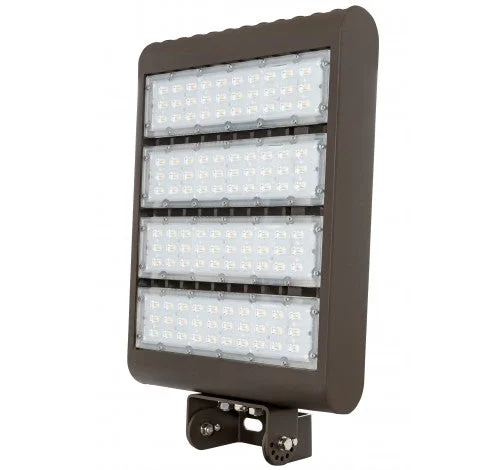

Westgate Lighting LF3-220CW-480V

LF3-220CW-480V Product

Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas, residential areas, balcony, terrace, small shops.

SPECIFICATIONS :

Wattage: 220W
Voltage: 480V
Input current: 1.8A Max
Other wattages: 150W, 300W
Power factor: PF20.90
Output voltage: 36-60VDC
Output current: 4.4A
Driver efficiency: 88%
Die-cast aluminum with powder coat finish (White)
Operating temperature: -30 – +40 °C
Lifespan: 50000 Hrs.
IP rating: IP65, Wet Locations
100% dip-tested under load
Main Structure: aluminum + Optical Lens
Storage temperature humidity: -40 – +80 °C, 10-90% RH
Dimmable
LED type/brand: SMD 3030/
