Description

Technical Specs

• Dual 120/277 voltage
• Energy efficient LED panel, 3.2W as (red) 3.8W as (green), 25-year rated
• Charge rate/power š¬ššœONš¬šš½ LED indicator light and push-to-test switch for mandated code compliance testing
• 4.8V long life maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours
• Ultra-bright, energy efficient, long life red LED
• Injection molded, engineering grade, 5VA flame retardant,high-impact resistant, thermoplastic in a white finish
• EZ snap out Chevron directional indicators
• Compact, low-profile design
• UL listed for damp locations. (0C š¬ššœ 50C)
• EZ-snap mounting canopy included for top or end mount
• Universal K/O pattern on the back plate for wall mount
• Five-year warranty on all electronics and housing
• Battery prorated for five years
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes.

Applications

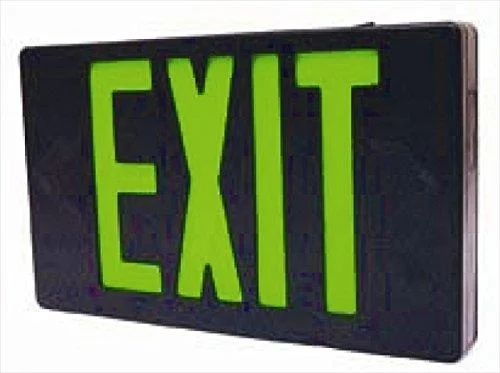

• High impact thermoplastic energy-efficient LED exit with emergency battery backup.
