Description

Westgate XTN4X-1RW

XTN4X-1RW Product

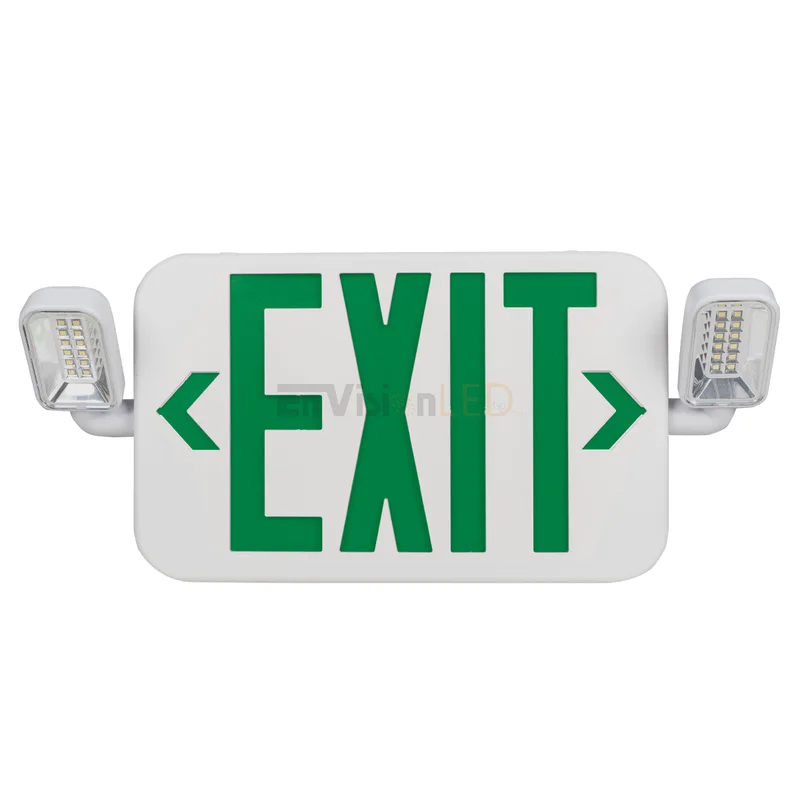

NEMA 4X Rated LED Exit Signs

SPECIFICATIONS:

ELECTRICAL SPECIFICATIONS:
• Voltage: dual 120V/277V
TECHNICAL SPECIFICATIONS:
• LED indicator light alerts on battery condition
• 4.8V Rechargeable Ni-Cad battery
• 90-minute EM-rated with push style test switch and red
indicator light
• Fully automatic solid-state, two-rate charger initiates
battery charging to recharge a discharged battery in 24
hours

HOUSING SPECIFICATIONS:
• Reinforced polycarbonate Housing with white, gray,
black finish
• Universal knockout pattern on back provided with
gasket for watertight seal for back mount
• Polycarbonate mounting canopy included for top or end
mount.
• EZ snap-out Chevron directional indicators
• Single or double faceplates
• NEMA4X rated
• IP Rating: IP66 Suitable for wet location

WARRANTY: 3 years
• Meets UL924, NFPA101 Life Safety Code, NEC, OSHA, Local
and State Codes
